NKF-10（MCM-22）zeolite
NKF-10（MCM-22）沸石具有两种独立的，彼此不相连的孔道，层内孔径为0.40×0.59nm的10元环二维正弦孔道；
层间孔径为0.71×0.82nm 的12元环超笼，以0.4×0.54nm的10元环开口与外面相通；
MCM-22沸石的这一独特结构使其在芳烃的烷基化、异构化和歧化，汽油改质催化裂解等诸多催化领域具有广阔的应用前景。
NKF-10（MCM-22） zeolite is a new style porous zeolite which has the structure of 10-membered and 12-membered ring pores in the meanwhile, the good thermal steady, the large adsorption volume, large specific surface area.
NKF-110（MCM-22）ZEOLITE COA
| 产品名称 (Zeolite Type) | MCM-22 ZEOLITE | |
| 产品编号 (ID) | NKF-10H | |
| 产品组分 (Product Components) | 氧化硅（SiO2 ）氧化铝（Al2O3） | |
| 项目 (Item) | 数据 | 检测方法 |
| 外观 (Shape) | Powder | / |
| 硅铝比 (SiO2/Al2O3) mol/mol | 28 | XRF |
| 阳离子型 (Cation Type) | H | / |

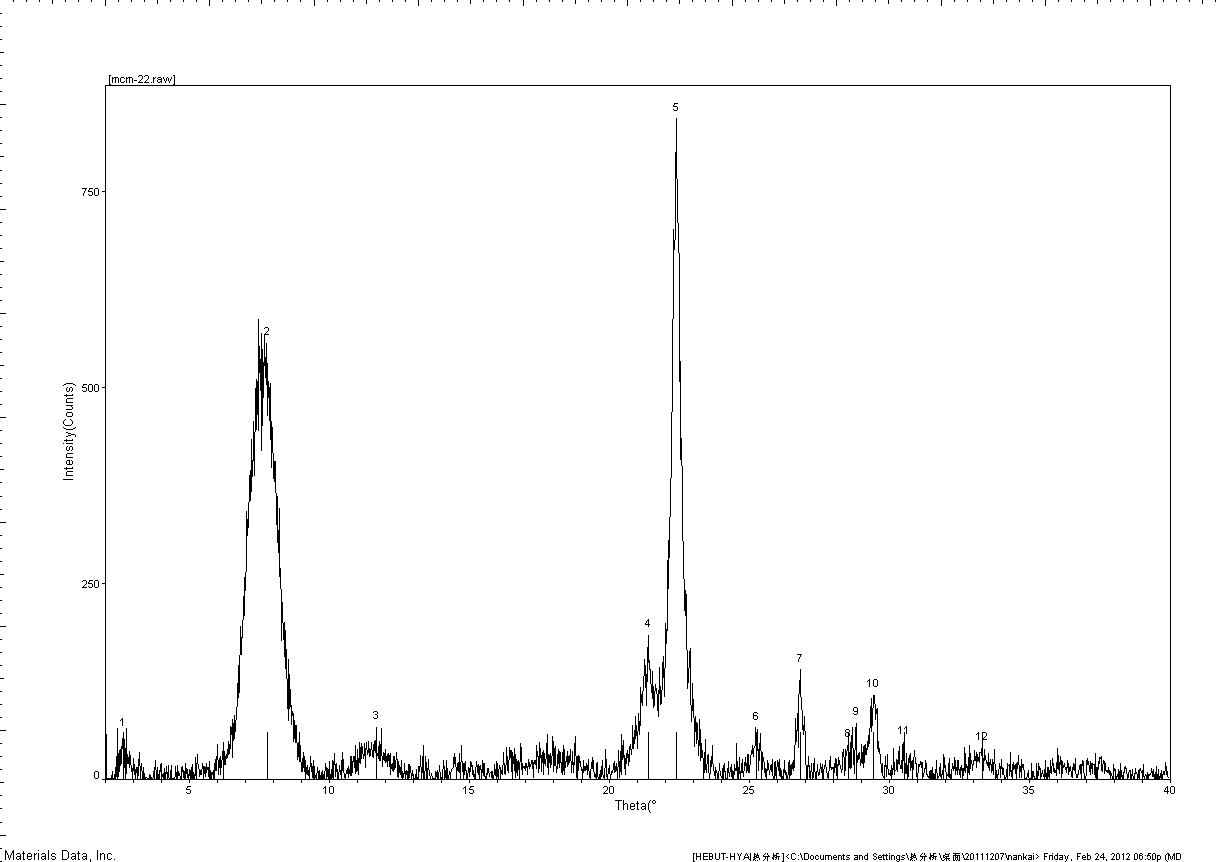

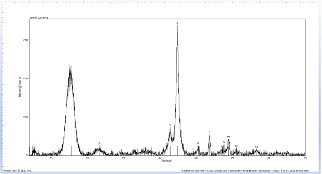

| 相对结晶度 (Crystallinity) % | 95 | XRD |
| 比表面积 (Surface Area, BET) m2/g | 440 | BET |
| 氧化钠 (Na2O) m/m % | 0.035 | XRF |
| 灼减 (LOI) m/m % | 2.6 | 1000℃, 1h |
运输：非危险品，但运输过程中要避免潮湿，保持干燥、密封。
Transportation：Non-dangerous goods, in transportation process avoid wet. Keep dry and airproof.
储存方法：在干燥、透风处贮存，不得露天存放。
Storage Method：Deposit in dry place and vent, not in the open air.
NKC®的产品符合优质的标准，受到全球研究人员和工程师的信赖。
NKC® Products are trusted by researchers and engineers worldwide for meeting the standards of excellence.
NKC® can provide packages：100g, 250g, 500g, 1kg, 10kg, 1000kg or based on your need.
