NKF-15(ZSM-35)分子筛
NKF-15(ZSM-35)分子筛的结构特征是由维度0.43×0.55nm 的十员环和0.34×0.48nm的八圆环构成的二维孔道系统组成, 平均孔径为0.6nm , 属于正交晶系, 晶胞参数为a= 1.892nm , b= 1.415nm , c= 0.747nm。
NKF-15(ZSM-35)分析数据 COA
产品名称 (Zeolite Type) |
ZSM-35分子筛 |
||
产品编号 (No) |
NKF-15-30H |
||
项目 (Item) |
企业指标 |
数据 |
检测方法 |
外观 (shape) |
白色粉末 |
白色粉末 |
目测 |
阳离子型 (Cation Type) |
H |
H |
/ |
硅铝比 (SiO2/Al2O3) mol/mol |
20~40 |
28 |
XRF |
相对结晶度 (Crystallinity) % |
≥95 |
96 |
XRD衍射仪 |
比表面积(Surface Area, BET) m2/g |
≥380 |
400 |
BET |
孔容 (Micro PV) cc/g |
≥0.27 |
0.28 |
BET |
平均颗粒 (D0.5) Mean Particle Size (μm) |
≤5 |
4 |
粒度分布仪 |

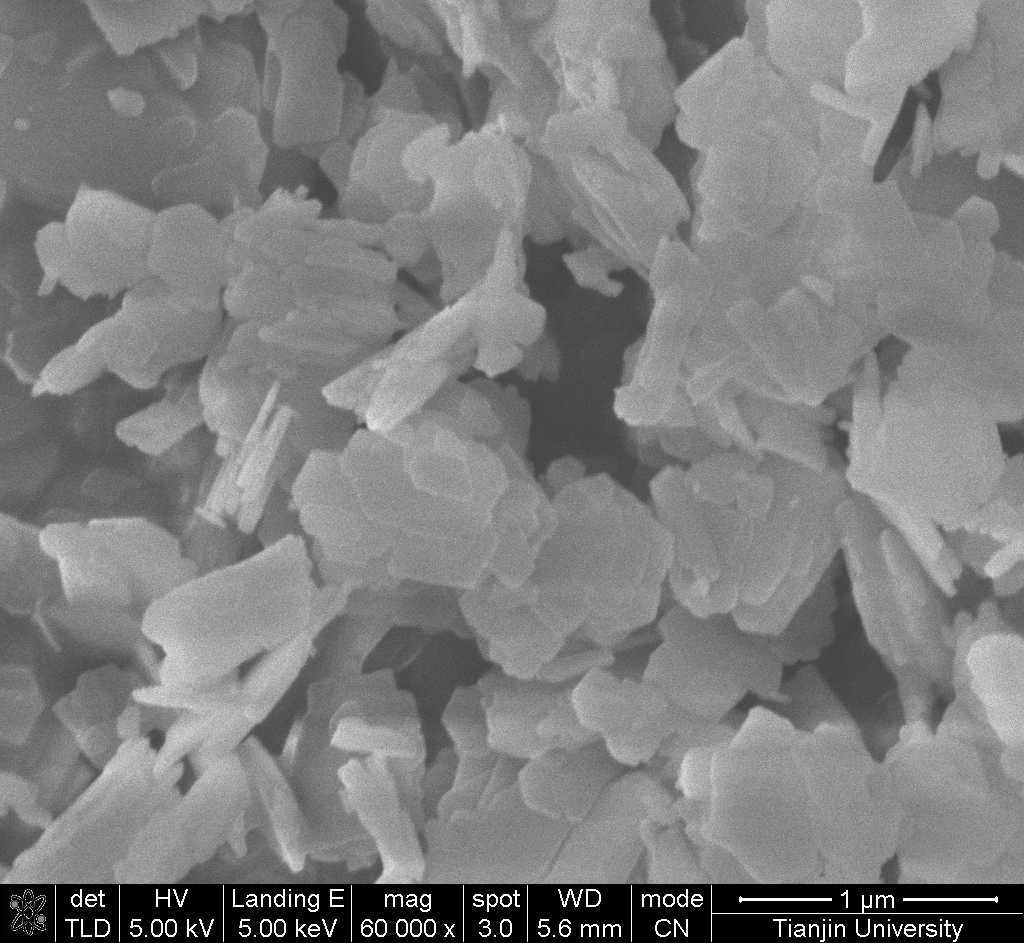

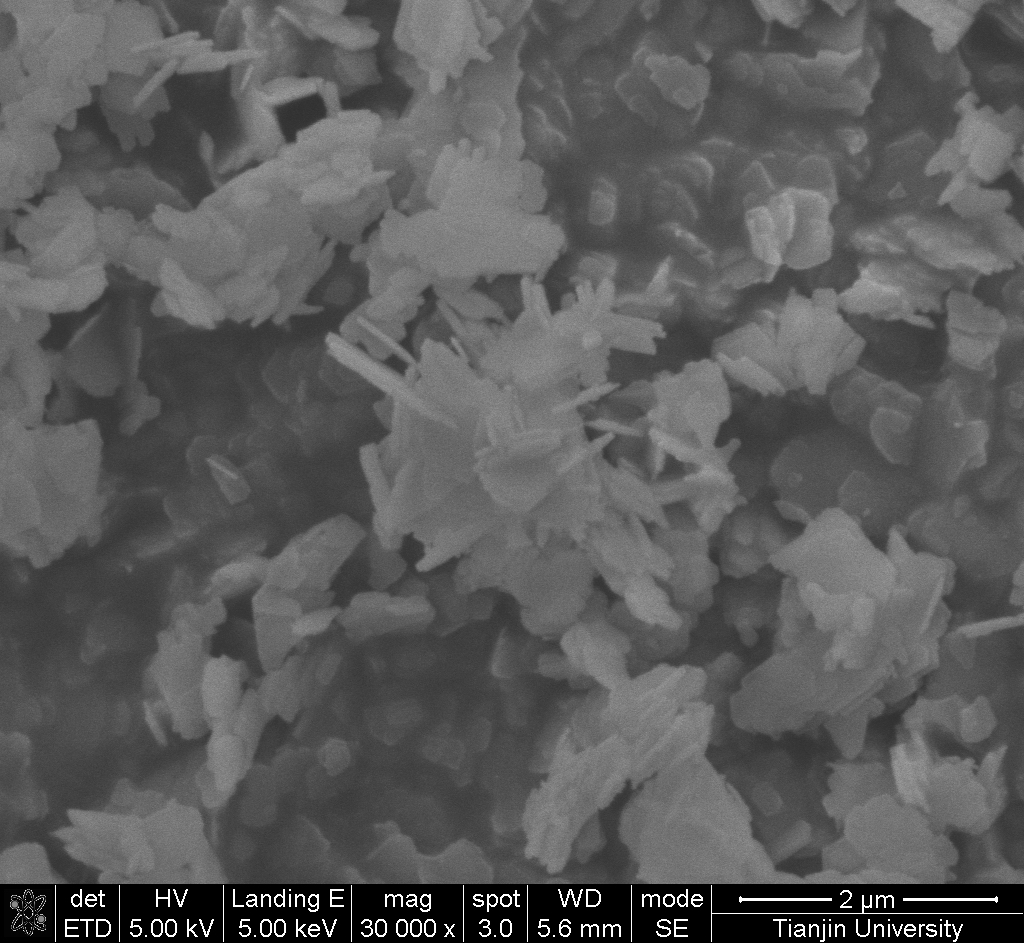

ZSM-35分子筛SEM图、XRD图
运输:非危险品,但运输过程中要避免潮湿,保持干燥、密封。
Transportation:Non-dangerous goods, in transportation process avoid wet. Keep dry and airproof.
储存方法:在干燥、透风处贮存,不得露天存放。
Storage Method:Deposit in dry place and vent, not in the open air.
NKC®的产品符合优质的标准,受到全球研究人员和工程师的信赖。
NKC® Products are trusted by researchers and engineers worldwide for meeting the standards of excellence.
NKC® can provide packages:100g, 250g, 500g, 1kg, 10kg, 1000kg or based on your need.
